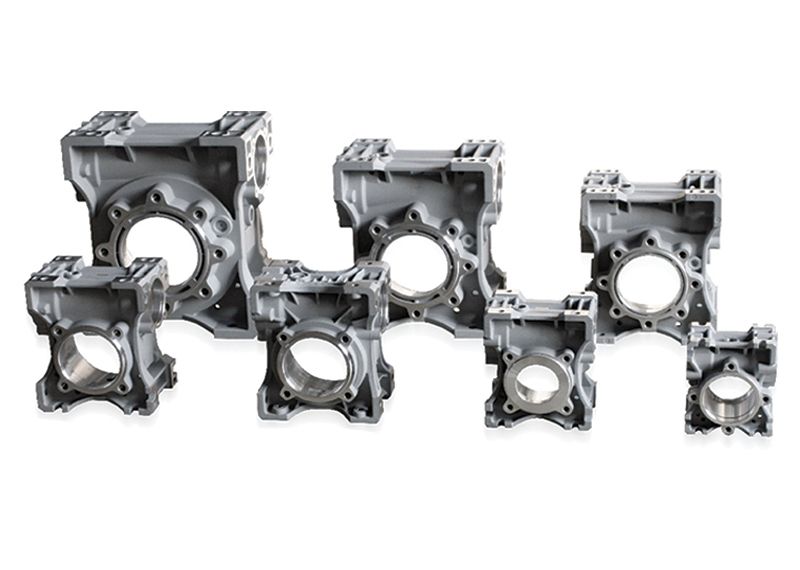

RW GEARBOX SPARE PART
RW系列
RW箱體
時間：2023-04-14
瀏覽量：2057
RV025 | RV030 | RV040 | RV050 | RV063 | RV075 | RV090 | RV105 | |
0 | 25 | 30 | 40 | 50 | 63 | 75 | 90 | 110 |
ΦD1 | 28、26 | 32 | 40 | 47 | 52 | 62 | 62 | 72 |
ΦD2 | 26、30 | 37 | 47 | 55 | 62 | 68 | 68 | 80 |
ΦD3 | 42 | 47 | 68 | 85 | 110 | 135 | 165 | 205 |
ΦD4 | 32 | 47 | 40 | 62 | 65 | 72 | 85 | 85 |
ΦD5 | 37 | 47 | 55 | 68 | 75 | 80 | 95 | 100 |
ΦD6 | 45 | 55 | 60 | 70 | 80 | 95 | 110 | 130 |
Pc | 16 | 20 | 29 | 34 | 44 | 46 | 57 | 64 |
Pp | 32.5 | 41.5 | 57 | 63.5 | 82.5 | 88 | 108 | 117.5 |
az | 22.5 | 29 | 36.5 | 43.5 | 53 | 57 | 67 | 74 |
AK | 62.5 | 72.2 | 93.5 | 109.5 | 135 | 161.25 | 191.25 | 233.75 |
S | 1.3 | 1.3 | 1.7 | 1.7 | 2.2 | 2.2 | 2.2 | 2.8 |
H | 83 | 97 | 121.5 | 144 | 174 | 205 | 238 | 295 |
Yf | 35.5 | 44 | 55 | 64 | 80 | 93 | 102 | 125 |
Ye | 22.5 | 27 | 35 | 40 | 50 | 60 | 70 | 85 |
Φd | 6 | 6.5 | 6.5 | 8.5 | 8.8 | 11 | 13 | 14 |
Aq | 71 | 81 | 101 | 121 | 146 | 174 | 208 | 252.5 |
AL | 35 | 40 | 50 | 60 | 72 | 86 | 103 | 127.5 |
